End Profile Grinding

SF 50 REINECKER

Discipline: Triathlon - Master in three challenges

Good to Know:

  • Low setup effort Up to four different grinding wheels can be mounted on one flange.
    Diameter max. 300 mm [11.8”]. Power-actuated three-jaw chuck with interchangeable jaws for clamping ranges from diameter 3 mm [0.12”] to 32 mm [1.25”].
  • Process-optimized systems: Measuring system inside of the C-axis for automatic determination of the workpiece insertion depth. Automatic loading device with integrated turning station for small batch machining.
  • Ergonomics for maintenance and service Easy and fast maintenance and repair due to good accessibility to servicerelevant areas.
  • NUM Flexium+ CNC control with powerful NUM DriveX drives.
Prospekt - DE
Brochure - EN

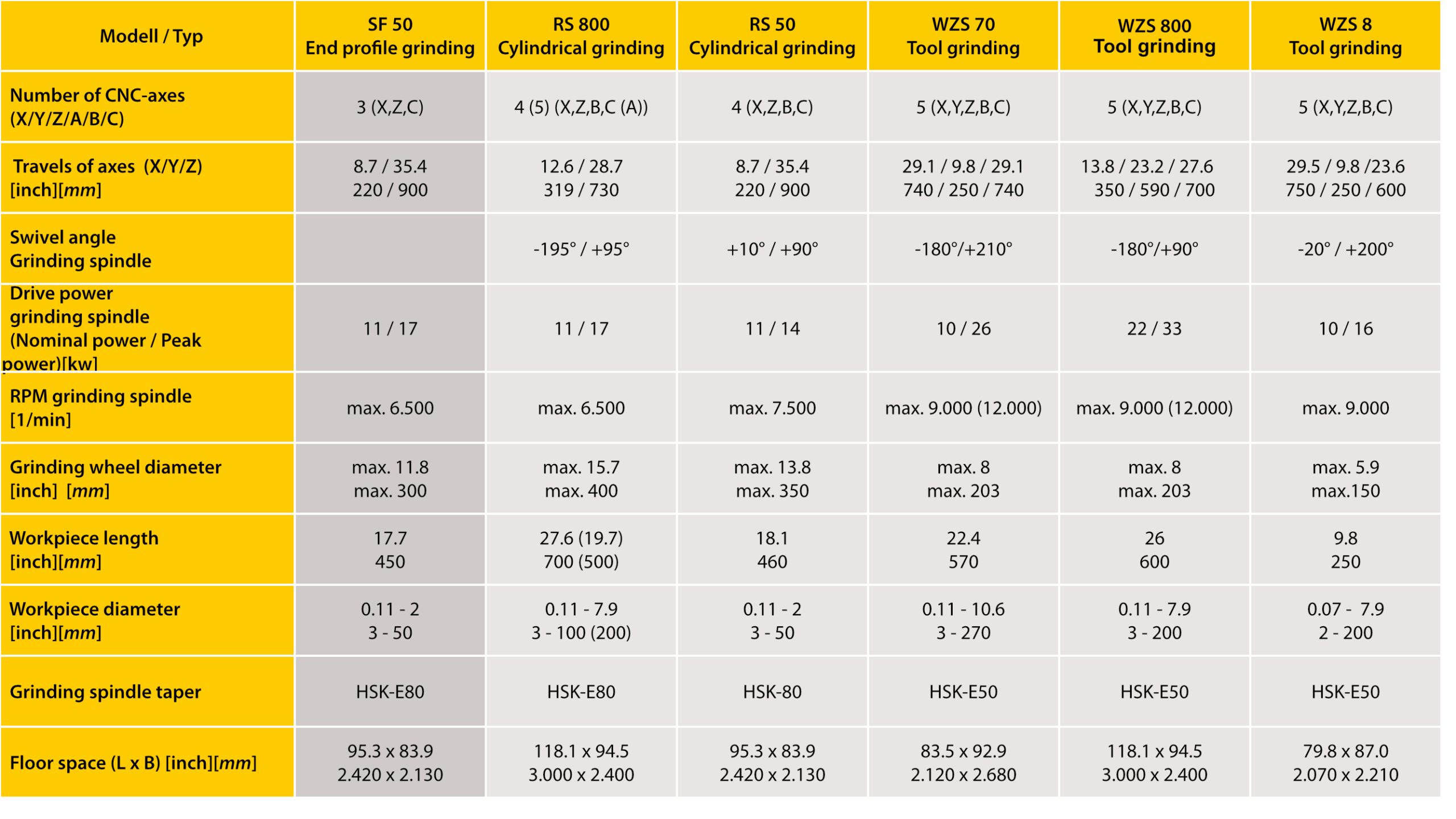

Overview of technical details for all models
